StimArt - Matrix Acidizing Design

StimArt's Matrix Acidizing Design module employs state-of-the-art fluid placement and wormhole propagation models to simulate "Matrix Acidizing" or "Acid Wash" jobs.

Matrix Acidizing Design Window

There are six tabs in this window:

  • File: Allows users to open a saved project, save the current project, and change the theme within this window.
  • Inputs: All model inputs must be entered into the software in this tab.
  • Cases: Users can combine different inputs created in the previous tab to form a complete case for simulation.
  • Technical Analysis: In this tab, users can adjust solver parameters, create sensitivity analysis (currently inactive), and execute the simulation.
  • Outputs: Simulation plots are displayed in this tab. Users can also export the PDF report of the simulation. In the current version, only predefined plots will be available to the user.
  • Help: In this tab, users can access the User Manual, Technical Manual, and License Status windows.

File

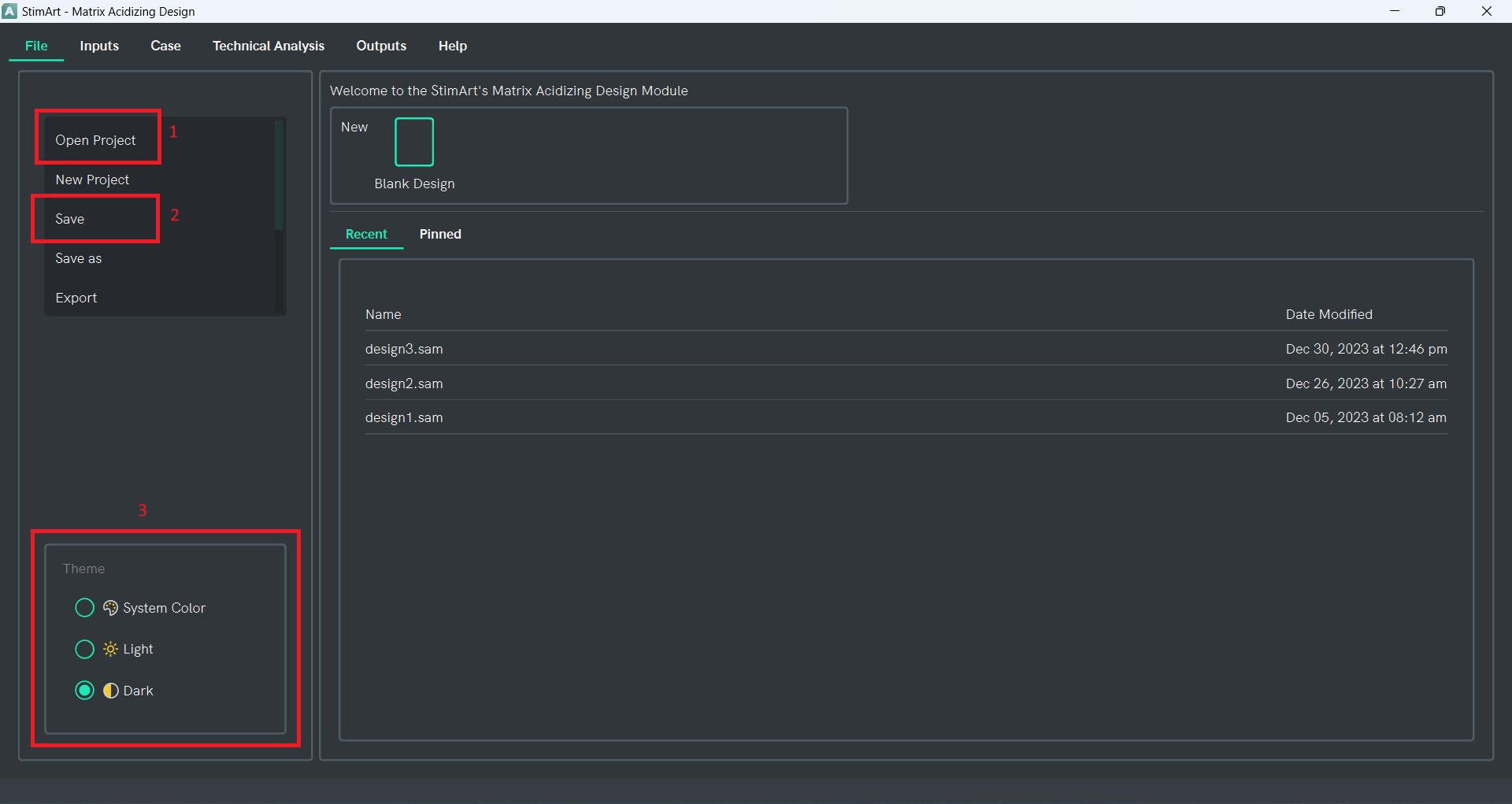

This is the initial window displayed upon launching this module. matrix window

Will be written ...
